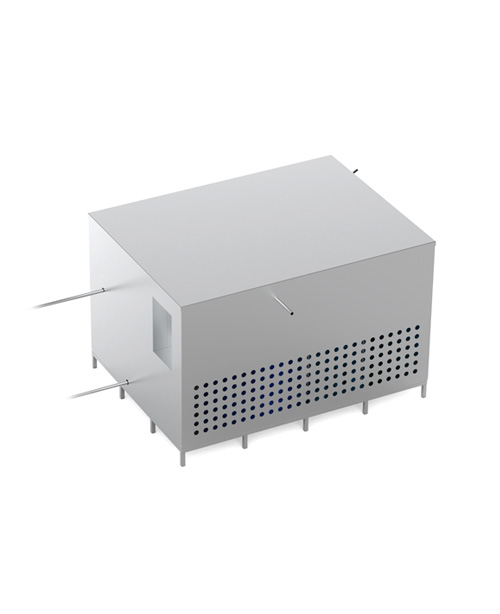

FD35 Model

FD35 Model Technical Features

Introduction PDF
Ice Capacity (kg/lot) 35 kg
Wet Product Loading (kg/lot) 20 / 25
Machine Dimensions (w*d*h)(mm) (**) 1410x1288x1654
Machine Settlement Area (m2) (**) 1,8
Machine Platform Area (m2) (*)
Ice Condenser Temperature (Centigrade) -45
Heat Conduction Convection
Rack Temperature (Centigrade) max 70
Product Cooling Place Within itself or in -40 chamber
Product Cooling Temperature (Centigrade) -32
Number of Racks 11
Rack Dimensions (mm) 378×950
Rack Clearance (mm) 38
Liquid Used in Heating Racks Electrical Heater
Number of Product Trays 11
Tray Dimensions (mm) 355×936
Tray Depth (mm) 3,7
Total Tray Area m2 20
Number of Product Loading Cars No
Rail System None
IQF (Individual Quick Freezing) No
Refrigerant R404A
Cooling Method Gas
Final Vacuum Level (Pa) 30 <
Defrost System Automatic
Power Consumption (kWh) 4
Circle Dimension (m) 0,65
Software Unique electronic card
Compressor Embraco
Vacuum Pump Baosi
Blower None
Remote Tracking System None
Chamber AISI 304
Tray Material AISI 304
Material of Heating Racks Aluminum



(*) As a recommendaton, the recommended area may vary depending on the number of machines and layout.

(**) Represents only the seatng area of the machine. The cover sweeping area and the spaces between the machine and other devices are not included.

Categories: , ,

Description

Description

Meet With the Freeze Dryer Technology!

You can freeze-dry fruits or vegetables to make life easier for yourself and for your loved ones, or you can use them to support a healthy diet at home, at work or on a trip, or for commercial purposes due to their long-lasting nature.
You can pack the vegetables&fruits and other products that you buy at a fair price in their seasons by using the Freeze Dryer to enjoy and eat them safely during four seasons.
If you like mountaineering, camping, and hiking, nutritious and practical Freeze Dryer food packages that you prepare at home will be an integral part of your backpack.
You can prepare food packages that take up little space, and preserve their freshness for a long time without food eterioration for an earthquake bag or any emergency kit. You can feed your pet with Freeze Dryer foods you prepare at home healthily and affordably.
